This product is no longer in stock
|Dimension||1/2" od x 1/8" id x 1/4" thick|
|Tolerances||±0.004" x ±0.004" x ±0.004"|
|Magnetization direction||Through Thickness|
|Magnetic Face||1/2" od x 1/8" id|
|Pull Force (Lbs)||10.37|
|Max. Operating Temp (°C/°F)||80|

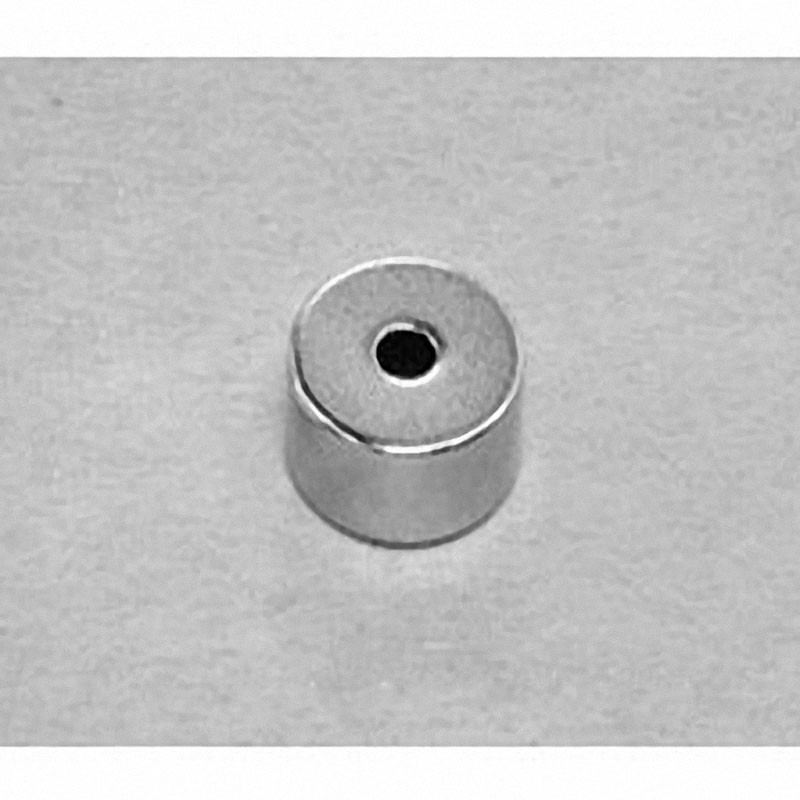

ü 1/2 inch od x 1/8 inch id x 1/4 inch thick
ü Each magnet's north and south pole are on opposite 1/2 inch od faces
ü Each magnet can support a steel weight of up to 10.37lb vertically from the magnetic face when in flush contact with a mild steel surface
ü Excellent resistance to demagnetization.
ü Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish
ü The magnet will be separate by gasket.
ü The box will be packed with iron to a magnetic shield.
These Small Neodymium Ring Magnets are little bigger than a watch battery but have an astonishing pull of 10.37lb. Every magnet has a triple coating of Nickel, copper and Nickel again to prevent against corrosion. Our Neodymium magnets are typically used in computer hard drives, audio speakers, electronics and medical fields. They also have many uses in engineering and manufacturing where small size and maximum strength are required. What's more, they are ideal for creating a shock-absorbing or damping effect because of their resistance to demagnetization.
Request a custom magnet quote, Please contact Heeger Magnet.
Ø Custom Magnets and Assemblies:
Design → Simulation → Prototype → Production
Ø Manufacturing capacity: Heeger Magnet can produce custom magnets in large volumes and retain inventory for just in time delivery. HM can also produce plastic or metal parts with embedded magnets.
Ø Custom magnets lead time: 3-4 Weeks.
Ø Custom plastic or metal assemblies lead time: 4-5 Weeks.
Neodymium Ring Magnet Safety Tips
Please keep these Small neodymium magnets away from children, as these magnets may cause severe injury(even death) if been swallowed. Please check our safety guideline before handle these magnets.
