What is Neodymium used for in magnets?
Neodymium (Nd) is a chemical element belonging to the rare earth elements group, with unique physical properties. While Neodymium is not particularly rare in nature, its demand has soared due to its extensive applications, especially in the field of magnets. Neodymium magnets (also known as NdFeB magnets, composed of Neodymium, Iron, and Boron) are widely used in modern technological products due to their outstanding magnetic performance. Whether it’s in electric vehicles, wind turbines, or everyday devices like hard disk drives and headphones, Neodymium magnets are omnipresent.
The powerful magnetic force of Neodymium makes it one of the most crucial magnetic materials in modern technology. This article will explore in detail the properties, advantages, and applications of Neodymium magnets in various industries.
At Heeger Magnet, we specialize in high-quality neodymium magnets, ensuring optimal performance for industrial and scientific applications.
Basics of Neodymium Magnets
Neodymium magnets are composed of Neodymium, Iron, and Boron (NdFeB), forming one of the strongest permanent magnets known to mankind. The strong magnetic force of Neodymium magnets originates from the high magnetic properties of the Neodymium element itself, allowing them to produce powerful magnetic fields in relatively small volumes.

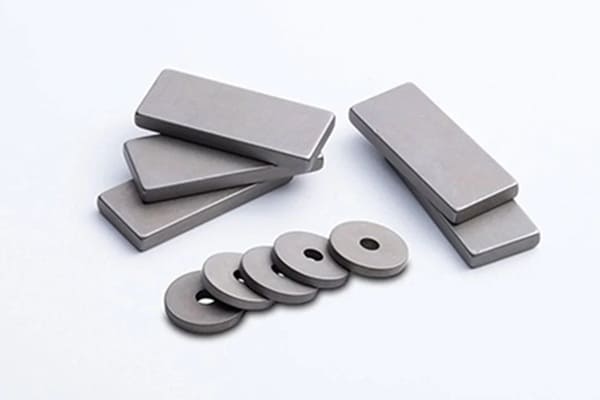

The manufacturing process of Neodymium magnets typically involves synthesizing Neodymium, Iron, and Boron into an alloy at high temperatures, followed by a powder metallurgy method to process the material into magnets with extremely high magnetic strength. These magnets can be shaped into various forms, such as round, square, or ring shapes, and are widely used in various mechanical and electronic devices.
1. Composition of Neodymium Magnets
- Neodymium (Nd): 29-32%, provides high magnetic anisotropy (strong alignment of magnetic moments)
- Iron (Fe): 63.5-68.5%, forms the crystalline structure (Nd₂Fe₁₄B phase)
- Boron (B): 1.0-1.2%, stabilizes the tetragonal crystal lattice
Molecular Formula: Nd₂Fe₁₄B
Crystal Structure: Tetragonal (space group P4₂/mnm)
2. Additives and Dopants
Additional elements are added to enhance specific properties:
| Element | Typical Amount | Function |
| Dysprosium (Dy) | 0-8% | Increases coercivity (heat resistance) |
| Terbium (Tb) | 0-5% | Improves temperature stability |
| Cobalt (Co) | 0-2% | Enhances Curie temperature |
| Niobium (Nb) | 0.5-1% | Refines grain structure |
| Aluminum (Al) | 0.3-0.5% | Optimizes corrosion resistance |
3. Manufacturing Process Effects
- Sintered NdFeB: Higher Dy/Tb content (3-8%) for high Hc grades
- Bonded NdFeB: Contains 2-5% epoxy/polymer binder
- Hot-Deformed NdFeB: Anisotropic nanostructure with 0% additives
4. Composition Variations by Grade
| Grade | Nd Content | Dy/Tb Content | Co Content | Application |
| N35 | 31.5% | 0% | 0% | Consumer electronics |
| N52 | 32.0% | 0% | 0% | High-performance motors |
| 35H | 30.5% | 3% Dy | 1% Co | Automotive sensors |
| 45SH | 29.8% | 6% Dy | 2% Co | Industrial motors |
Note: Higher Dy/Tb content improves temperature resistance but reduces remanence (Br) by 5-10% per 1% Dy added.
5. Impurity Control
Maximum allowable impurities:
- Oxygen (O): <2000 ppm
- Carbon (C): <800 ppm
- Nitrogen (N): <150 ppm
Looking for top-quality neodymium magnets? Explore Heeger Magnet’s selection.
Characteristics and Advantages of Neodymium Magnets
Neodymium magnets’ powerful magnetism, high temperature resistance, and corrosion resistance make them central to modern magnetic technologies. Here are some of the main characteristics and advantages of Neodymium magnets:
Key Performance Characteristics:
| Property | Typical Value Range | Comparison to Other Magnets |
| Remanence (Br) | 1.0-1.4 T | 2-3× AlNiCo, 1.5× SmCo |
| Coercivity (Hc) | 800-2000 kA/m | 3-5× Ferrite, 1.2-1.5× SmCo |
| Energy Product (BH)max | 35-55 MGOe | Highest among commercial magnets |
| Curie Temperature | 310-400°C | Lower than SmCo (750-850°C) |
| Density | 7.4-7.6 g/cm³ | 15% denser than SmCo |
Unique Material Advantages
A. Magnetic Strength
Neodymium magnets are currently among the strongest permanent magnets available, with their magnetic force being several times that of traditional AlNiCo and ferrite magnets. In the same volume, Neodymium magnets can provide stronger magnetic fields while being lighter in weight.
- The highest energy density of commercially available permanent magnets
- Example: N52 grade generates >1.4 T surface field (equivalent to 14,000 Gauss)
- Enables miniaturization – 10× stronger than ferrite per unit volume
B. High Temperature Resistance
Neodymium magnets exhibit relatively high temperature resistance. Some high-performance Neodymium magnets can retain stable magnetic properties in environments exceeding 150°C, making them ideal for applications in high-temperature environments.
- Stable Performance: Can maintain magnetic properties up to 200°C or more.
- Efficient in Motors/Generators: Ensures performance in high-temperature environments.
- Prevents Magnetic Loss: Reduces the risk of degradation in critical applications.
C. Corrosion Resistance
Although Neodymium magnets are sensitive to moisture and air, they are typically coated with protective layers like nickel or titanium, significantly enhancing their corrosion resistance and prolonging their lifespan.
- Durability: Protective coatings resist moisture and chemicals.
- Longer Lifespan: Prevents rust and oxidation, extending magnet life.
- Preserves Magnetism: Coatings maintain magnetic strength over time.
D. Compact Size, High Force
Thanks to their powerful magnetism, Neodymium magnets can deliver the same or even greater magnetic force in a much smaller size, which is particularly useful for applications where high magnetic performance is required in limited spaces.
- Space-Efficient: Delivers high force in smaller sizes.
- Lightweight: Ideal for weight-sensitive industries like aerospace.
- Design Flexibility: Enables compact and efficient product designs.
Explore our optimized neodymium magnets.
Major Applications of Neodymium Magnets
Neodymium magnets are integral to a wide range of industries due to their exceptional magnetic strength, compact size, and reliability. Their versatility makes them a vital component in numerous applications, from everyday consumer electronics to advanced industrial machinery. These magnets are indispensable in technologies that require strong, compact magnetic fields, and they continue to drive innovation across various sectors. Below are some of the key application areas where Neodymium magnets are essential:
1. Electronics & Consumer Devices
| Application | Magnet Grade | Key Specifications | Performance Benefit |
| Smartphone Speakers | N38-N45 | 0.5-1.2T flux density | 90dB+ sound output in <5mm thickness |
| HDD Spindle Motors | N42SH | ±0.05mm tolerance | 7200 RPM with <0.1% vibration |
| TWS Earbud Charging | N52 D6×1mm | 50-100mN holding force | Qi wireless charging alignment |
| Camera AF Modules | N45H Thin Rings | 0.3° step precision | 0.5s ultra-fast focus |
2. Electric Vehicles & Transportation
| Component | Grade | Operating Conditions | Advantage |
| EV Traction Motors | 48EH (Dy-free) | 180°C peak, 300kW | 95% efficiency vs 88% ferrite |
| Regenerative Braking | 42SH | 10,000+ duty cycles | 15% energy recovery boost |
| Electric Power Steering | 35UH | 120°C continuous | 30% weight reduction |
| Hybrid Transmission | 40H | 150°C oil-immersed | 50Nm torque in 100mm diameter |
3. Industrial Systems
| Equipment | Magnet Solution | Technical Parameters | Benefit |
| CNC Servo Motors | N42 Arc Segments | 0.1% torque ripple | ±1μm positioning |
| Magnetic Separators | N50 Blocks | 1.8T surface field | 99.9% ferrous removal |
| Linear Actuators | N35-N38 Plates | 500N/cm² adhesion | 20% faster cycle times |
| Robotic Grippers | N52 Countersunk | 5kg holding at 5mm gap | No power needed |
4. Energy Generation
| System | Grade | Design Features | Performance |
| Wind Turbine Generators | 45SH Epoxy-coated | 6MW capacity | 5% higher yield vs ferrite |
| Micro-hydro Turbines | 40H Nickel-plated | 0.5-2m/s water speed | 24/7 operation |
| Flywheel Energy Storage | N42SH Rings | 50,000 RPM rating | 98% round-trip efficiency |
5. Medical Technology
| Device | Magnet Specification | Critical Requirements | Solution |
| MRI Scanners | N50H Ni-Cu-Ni plated | 0.5-3T field homogeneity | <1ppm variance |
| Surgical Robots | N38EH Biocompatible | 300°C autoclave safe | ISO 10993 certified |
| Dental MRI | N42 Arc Segments | 0.1T localized field | Zero artifact imaging |
| Implant Pumps | N35P Polymer-bonded | MRI Conditional | 10yr lifespan |
6. Emerging Applications
| Innovation Area | Advanced Magnet Type | Breakthrough Capability |
| Maglev Bearings | N42H High-Temp | 0.5μm air gap stability |
| Quantum Computing | N50 Ultra-Homogeneous | <0.01% field variation |
| Spacecraft Attitude Control | 48SH Radiation-hardened | 200°C ΔT tolerance |
Request a custom quote for high-quality neodymium magnets.
Technical Trends (2025)
Automotive:
- 200kW+ motors using Dy-free 48EH grade
- Integrated rotor designs with 0.5 mm-thin magnets
Renewables:
- Direct-drive wind turbines with 10MW+ capacity
- Halbach array configurations for 20% field boost
Miniaturization:
- 0.3 mm-thick flexible NdFeB for wearables
- 3D-printed magnetic circuits
The future of Neodymium magnets is undeniably bright, with their importance growing across a variety of fields. As global industries continue to evolve towards more sustainable practices, Neodymium magnets will be at the heart of innovations, especially in the rapidly expanding electric vehicle sector and renewable energy solutions. The shift towards cleaner energy sources, such as wind and solar power, will further fuel the demand for these magnets, ensuring their prominence in green technology.
Beyond these applications, advancements in high-tech industries, such as robotics, medical devices, and consumer electronics, will continue to drive the need for Neodymium magnets. The development of even more efficient and cost-effective manufacturing processes will further expand their utility, making them essential for the future of numerous industries.
At Heeger Magnet, we supply high-performance neodymium magnets that meet IEC 60404-8-1 and ASTM A977 standards, guaranteeing exceptional magnetic properties and reliability.
FAQ
| Question | Answer |
| What are Neodymium magnets used for? | Neodymium magnets are used in electric motors, consumer electronics, and renewable energy applications. |
| Why are Neodymium magnets so powerful? | Neodymium magnets are made from a combination of neodymium, iron, and boron, which creates a strong magnetic field. |
| How do Neodymium magnets contribute to green energy? | They are used in wind turbines and electric vehicle motors, helping drive clean and sustainable energy solutions. |
| Will the demand for Neodymium magnets increase in the future? | Yes, as technologies like electric vehicles and renewable energy expand, the demand for Neodymium magnets will continue to rise. |
| What are some challenges faced by Neodymium magnets? | Challenges include resource scarcity, environmental concerns, and the high cost of production. |
| How are Neodymium magnets manufactured? | They are typically produced by sintering the magnet material, followed by magnetizing and shaping the final product. |
In conclusion, Neodymium magnets are not only a cornerstone of modern technology but also a key enabler of the innovations of tomorrow. Their continued growth and adaptation to emerging technologies ensure that they will remain a critical component in shaping the future of industries around the world. While challenges such as resource scarcity and environmental concerns remain, ongoing research and innovation promise to address these issues, allowing Neodymium magnets to continue playing an essential role in driving the technological advancements of the future.
