Types of Ferrite Magnets and Their Industrial Applications
Ferrite magnets remain a key component in modern industry due to their cost-effectiveness, corrosion resistance, and stability in medium-temperature environments. While rare earth magnets like NdFeB and SmCo dominate high-performance sectors, ferrite magnets strike a valuable balance of magnetic strength, affordability, and chemical stability. Their widespread use in motors, sensors, speakers, and home appliances reflects their reliability across consumer and industrial applications. Ferrite magnets are especially relevant in scenarios where budget constraints, environmental exposure, and moderate temperature tolerance are crucial considerations. In this article, we’ll explore the different types of ferrite magnets, how they are produced, what applications they best suit, and how they compare with other magnet materials. From isotropic and anisotropic ferrites to soft ferrites used in electronic circuits, we’ll break down their properties, advantages, and limitations practically, equipping engineers, manufacturers, and technical buyers with the information needed to make informed decisions.
At Heeger Magnet, we specialize in ferrite magnets, ensuring optimal performance for industrial and scientific applications.

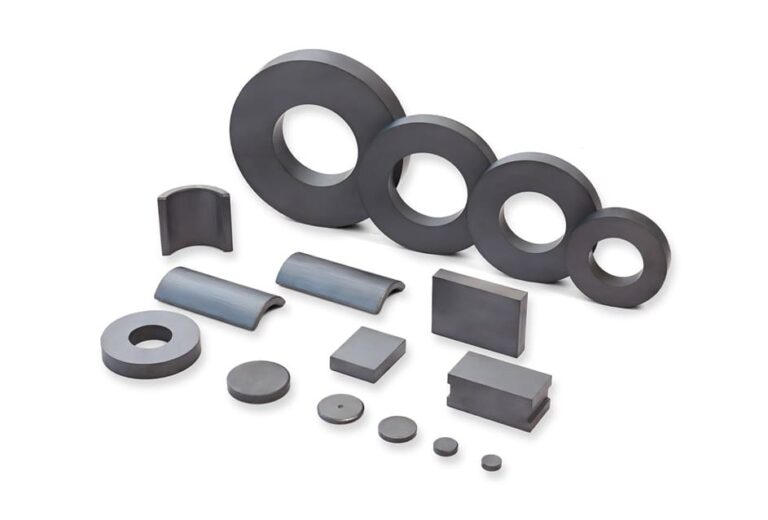

What Are Ferrite Magnets and How Are They Made?
Ferrite magnets are ceramic magnetic materials primarily composed of iron oxide mixed with other metallic elements such as barium, strontium, manganese, or zinc. These compositions are typically manufactured via powder metallurgy processes involving pressing and sintering. Based on magnetic behavior and composition, ferrites are broadly classified into hard and soft types.
| Type | Main Elements | Magnetic Property | Common Grades | Max Operating Temp | Application Examples |
| Hard Ferrite | Fe₂O₃ + BaCO₃ / SrCO₃ | Permanent magnet | Y30, Y35 | 250°C | Motors, loudspeakers, sensors |
| Soft Ferrite | Fe₂O₃ + Mn/Zn/Ni oxides | Temporary magnet | 3C90, N87 | 100–200°C | Transformers, inductors, EMI cores |
These variants differ in processing, performance, and price. Hard ferrites are widely used where permanent magnetism is needed, while soft ferrites are essential in alternating magnetic field environments such as electronics.
What Are the Main Types of Soft Ferrite Magnets?
Soft ferrites are primarily used in electronics and power conversion systems due to their low coercivity and high resistivity. These materials can be easily magnetized and demagnetized, making them ideal for AC applications. The two major categories of soft ferrites are manganese-zinc (MnZn) ferrites and nickel-zinc (NiZn) ferrites, each offering distinct advantages in terms of frequency response and power handling.
MnZn Ferrite:
- Composition: Fe₂O₃ + MnO + ZnO
- Key Properties: High permeability, low resistivity
- Typical Applications: Transformers, power inductors
NiZn Ferrite：
- Composition: Fe₂O₃ + NiO + ZnO
- Key Properties: High resistivity, suitable for high-frequency circuits
- Typical Applications: RF coils, EMI suppression, signal transformers
MnZn ferrites perform better in low-frequency power conversion (below 2 MHz), while NiZn ferrites are preferred for high-frequency circuits due to their low eddy current losses. These properties make soft ferrites indispensable in modern power electronics and communication systems.
What Are the Main Types of Hard Ferrite Magnets?
Hard ferrite magnets are widely used due to their permanent magnetism and affordability. They are produced in various compositions tailored to specific needs.
Barium Ferrite (BaFe₁₂O₁₉):
- Key Properties: Good magnetic strength, economical, corrosion-resistant
- Typical Applications: General-purpose magnets, speakers, toys
Strontium Ferrite (SrFe₁₂O₁₉):
- Key Properties: Higher coercivity and energy product than barium ferrite
- Typical Applications: Automotive sensors, motors, magnetic separators
Cobalt Ferrite (CoFe₂O₄):
- Key Properties: Very high coercivity, moderate magnetization, chemically stable
- Typical Applications: Specialty sensors, microwave devices, magnetic recording media
Each of these hard ferrite types offers a trade-off between performance, cost, and specific industrial suitability. Strontium ferrite, in particular, has become the dominant type for high-performance permanent magnet applications among hard ferrites.
What Are the Properties of Ferrite Magnets Compared to Other Magnet Types?
Ferrite magnets are less powerful than NdFeB or SmCo magnets but offer exceptional corrosion resistance and perform well in moderately high-temperature environments. They are often selected when durability and cost-effectiveness are more important than magnetic strength. This makes ferrite magnets a strong candidate for outdoor, automotive, and chemically exposed applications.
| Property | Ferrite | NdFeB | SmCo |
| Remanence (Br) | 0.2 – 0.45 T | 1.0 – 1.4 T | 0.9 – 1.1 T |
| Max Operating Temp | Up to 250°C | 80 – 230°C | 250 – 350°C |
| Corrosion Resistance | Excellent | Poor (requires coating) | Good |
| Coercivity (Hci) | Moderate | High | Very High |
| Cost | Low | High | Very High |
While ferrite magnets can’t match the raw strength of rare earth magnets, they provide consistent performance in environments where high humidity, salt exposure, or long-term thermal stability are priorities. Their affordability and resistance to demagnetization also make them ideal for volume-based and price-sensitive applications.
Discover our optimized magnetic material products.
Where Are Ferrite Magnets Used in Industry?
Ferrite magnets are used across a wide range of industries due to their favorable combination of magnetic performance, cost-effectiveness, and chemical stability. These magnets are often found in environments where high volume and resistance to demagnetization are critical. Compared to rare earth magnets, ferrite magnets are more chemically stable and better suited for outdoor or corrosive conditions without the need for expensive coatings.
| Industry | Typical Applications | Ferrite Type |
| Automotive | Loudspeakers, magnetic latches, and microwave ovens | Hard Ferrite |
| Consumer Electronics | Transformers, EMI filters, and power inductors | Hard Ferrite |
| Power Electronics | Transformers, EMI filters, power inductors | Soft Ferrite |
| Renewable Energy | Wind turbine sensors, battery chargers | Hard & Soft Ferrite |
| Telecommunication | RF isolators, signal transformers | Soft Ferrite |
Ferrite magnets are integral to applications requiring reliable magnetism in both static and dynamic environments. Their broad use in diverse fields highlights their enduring importance in both legacy and modern technologies.
Why Choose Ferrite Magnets Over NdFeB or SmCo in Some Cases?
Ferrite magnets are the preferred choice when cost, corrosion resistance, and moderate temperature resistance are more important than magnetic strength.
Advantages of Ferrite Magnets
- Low material and production cost
- Inherent corrosion resistance without coating
- Effective up to 250°C
- Simple to mold into various shapes
Request a custom quote for a high-quality ferrite Magnet.
Can Ferrite Magnets Be Customized for Specific Needs?
Yes, ferrite magnets can be tailored in terms of geometry, magnetic orientation, and mechanical properties.
Customization Options for Ferrite Magnets:
| Parameter | Customizable | Details & Notes |
| Shape and Size | Tight dimensional and magnetic property tolerances are achievable for precision applications | Blocks, rings, arcs, cylinders, discs, washers, and complex 3D shapes are possible with precision cutting and grinding |
| Magnetic Orientation | Yes | Axial magnetization, radial magnetization, multipole patterns, isotropic or anisotropic grain alignment |
| Coatings | Optional | Typically not required due to natural corrosion resistance; optional epoxy, nickel, or zinc plating for extra protection in harsh environments |
| Mechanical Strength | Yes | Adjusted through binder additives and sintering processes to improve fracture toughness and machinability |
| Magnetic Grade | Yes | Custom grades available depending on required coercivity, remanence, and energy product |
| Tolerances | Yes | Tight dimensional and magnetic property tolerances achievable for precision applications |
What Are the Limitations of Ferrite Magnets?
Despite their advantages, ferrite magnets have specific drawbacks, particularly when high magnetic energy or mechanical toughness is required.
- Brittle and prone to chipping
- Lower magnetic strength compared to rare-earth magnets
- Difficult to machine or reshape after sintering
How Are Ferrite Magnets Manufactured?
Ferrite magnets are made using powder metallurgy techniques, involving precise control of composition and temperature.
Steps in Ferrite Magnet Manufacturing
- Raw material mixing (Fe2O3 with metal carbonates)
- Calcination to form ferrite compound
- Milled into a fine powder
- Pressing into shape under a magnetic field (for anisotropic magnets)
- Sintering at ~1250°C
- Magnetization
- Quality testing and packaging
FAQ
| Question | Answer |
| Are ferrite magnets safe for outdoor use? | Yes, ferrite magnets resist corrosion and can be used outdoors without protective coatings. |
| Can ferrite magnets work in high temperatures? | Yes, depending on the grade, ferrite magnets can operate up to around 250°C. |
| Are ferrite magnets suitable for precision applications? | Generally no. Their lower energy density limits their use in compact or high-performance devices. |
| How do I choose between soft and hard ferrite? | Use soft ferrite for electromagnetic circuit components and hard ferrite for permanent magnets. |
Conclusion
Ferrite magnets offer a solid balance of cost, durability, and reliable performance, making them a go-to choice in many industries. While not as strong as rare earth magnets, their corrosion resistance and stability at moderate temperatures make them ideal for motors, sensors, transformers, and more. Their ease of customization and low production costs support large-scale manufacturing without sacrificing quality. Heeger Magnet provides high-quality ferrite magnets with flexible options to meet varied industrial needs, ensuring dependable performance at competitive prices.
