SmCo Vs. AlNiCo Magnets: Key Properties Compared for High-Temp Applications

In high-temperature applications, the choice of magnets can significantly impact performance and durability. Among the various types of permanent magnets, SmCo (Samarium Cobalt) and AlNiCo (Aluminum-Nickel-Cobalt) stand out for their remarkable ability to withstand extreme thermal conditions. These magnets are crucial components in industries such as aerospace, automotive, and industrial machinery, where heat resistance is essential. As technology evolves, understanding the strengths and limitations of SmCo and AlNiCo magnets has become increasingly important for engineers and manufacturers.

This blog aims to provide a comparative analysis of SmCo and AlNiCo magnets, focusing on their key properties, performance in high-temperature settings, and suitability for various applications in 2025 and beyond. By the end of this article, you will gain a deeper insight into the advantages of each magnet type and how to choose the right one for your high-temperature needs.

At Heeger Magnet, we specialize in high-quality SmCo and AlNiCo magnet products, ensuring optimal performance for industrial and scientific applications.

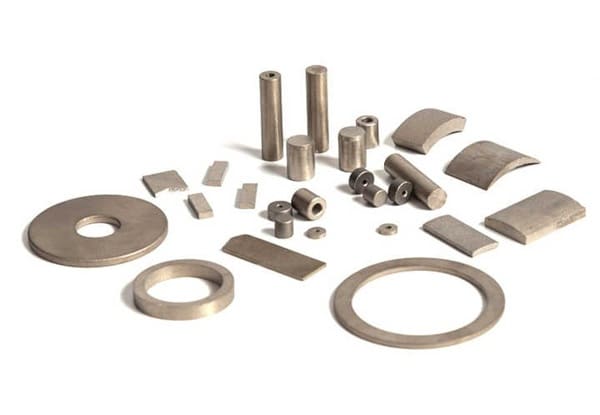

What Is a SmCo Magnet?

1. Composition and Manufacturing Process of SmCo Magnets

SmCo magnets are made primarily of samarium (Sm) and cobalt (Co), two rare-earth metals that give the magnets their unique properties. The exact ratio of samarium to cobalt can vary, but typical compositions range from SmCo_5 (one samarium atom for five cobalt atoms) to Sm_2Co_17 (two samarium atoms for seventeen cobalt atoms). The higher the samarium content, the stronger the magnetic properties and the higher the temperature resistance.

Manufacturing Process:

• Powder Metallurgy: The primary method for producing SmCo magnets is powder metallurgy. This involves blending samarium and cobalt powders and then pressing them into molds.
• Sintering: The pressed powders are sintered at high temperatures to form a solid piece. This process ensures the magnet maintains high coercivity.
• Machining: After sintering, the magnets are precision-machined to the desired shape, as SmCo magnets are brittle and can break during the manufacturing process.
• Magnetization: Finally, the magnets are magnetized by applying a strong magnetic field.

2. Key Properties of SmCo Magnets

SmCo magnets are well-known for their exceptional properties, especially their ability to retain magnetic strength at high temperatures. Here are the key properties:

• High Coercivity: The ability to withstand external magnetic fields without losing magnetization. This makes SmCo magnets particularly useful in harsh environments where stability is required.
• High Temperature Stability: SmCo magnets retain their magnetic properties in extreme heat, making them ideal for high-temperature applications like aerospace and industrial machinery.
• High Energy Product: SmCo magnets have a high maximum energy product (BH_max), which means they can produce a strong magnetic field relative to their size.

3. Advantages of SmCo Magnets for High-Temperature Applications

• Excellent Heat Resistance: SmCo magnets can function in temperatures up to 350°C and higher, which is critical for applications like aerospace and high-performance motors.
• Long-Term Stability: Due to their high coercivity, SmCo magnets maintain their strength and stability for extended periods, even in extreme environments.
• Compact and Powerful: SmCo magnets offer a high energy density, meaning that smaller magnets can produce stronger fields compared to other types of magnets, making them ideal for compact systems where space is limited.
• Corrosion Resistance: SmCo magnets are inherently resistant to corrosion, which is beneficial for use in environments exposed to moisture, chemicals, or other harsh conditions.
• Wide Range of Applications: These magnets are used in high-temperature motors, sensors, actuators, and in the aerospace, automotive, and defense industries.

Looking for high-quality SmCo magnet products? Explore Heeger Magnet’s selection.

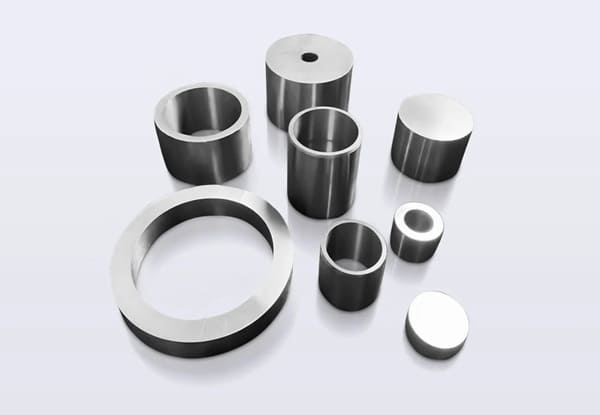

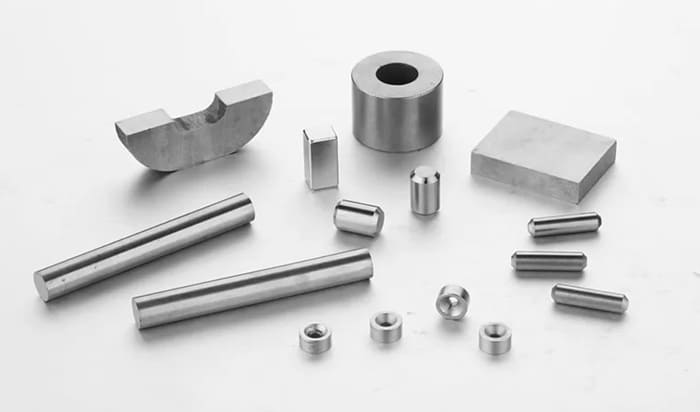

What Is AlNiCo Magenet?

1. Composition and Manufacturing Process of AlNiCo Magnets

AlNiCo magnets are made from a combination of aluminum (Al), nickel (Ni), and cobalt (Co), along with small amounts of other metals like copper (Cu), iron (Fe), and titanium (Ti). The precise composition of these elements can be adjusted to optimize the magnetic properties and performance.

Composition:

• Aluminum (Al): Enhances the magnet’s resistance to corrosion and improves the overall magnetic strength.
• Nickel (Ni): Contributes to the high remanence and stability of the magnet.
• Cobalt (Co): Increases the magnetic strength and temperature stability.
• Copper (Cu), Iron (Fe), and Titanium (Ti): These are added in small amounts to enhance specific properties such as ductility and hardness.

Manufacturing Process:

1. Alloy Production: The metals are melted and mixed to create the alloy. This can be done through a process like casting or vacuum melting.
2. Casting or Powder Metallurgy: In casting, the alloy is poured into molds to form the desired shape. For powder metallurgy, the metal is powdered and then pressed into a mold before sintering.
3. Sintering: The cast or pressed alloy is sintered in a furnace to ensure the magnetic properties are developed and the material is solidified.
4. Machining: Once sintered, the magnet is precision-machined to the required shape, as AlNiCo magnets are brittle.
5. Magnetization: Finally, the magnet is magnetized by exposing it to a strong external magnetic field.

2. Key Properties of AlNiCo Magnets

AlNiCo magnets possess a distinct set of magnetic properties that make them ideal for specific applications, particularly in situations requiring stable performance under high-temperature conditions. Here are the key properties of AlNiCo magnets:

• High Remanence (Br): AlNiCo magnets exhibit strong remanent magnetization, meaning they retain their magnetic properties well after being magnetized.
• Moderate Coercivity (Hc): They have moderate resistance to demagnetization, which makes them suitable for applications that require a balance between stability and ease of magnetization.
• High Curie Temperature (Tc): These magnets maintain their magnetism up to high temperatures, making them ideal for high-temperature environments.
• Temperature Stability: AlNiCo magnets perform well in high-temperature applications and can operate stably at temperatures up to 550°C.
• Energy Product (BHmax): The energy product is moderate, meaning AlNiCo magnets produce a decent magnetic field strength without being as compact as some other rare-earth magnets.

3. Advantages of AlNiCo Magnets for High-Temperature Applications

• Exceptional Temperature Stability: AlNiCo magnets can operate effectively at high temperatures, typically up to 550°C, making them suitable for use in motors, sensors, and other equipment that must withstand heat.
• Stable Magnetic Performance: AlNiCo magnets maintain a high level of magnetic strength over time, even when exposed to high temperatures, which ensures their long-term reliability in high-performance applications.
• Ease of Fabrication: Compared to other high-temperature magnets, AlNiCo magnets are relatively easy to manufacture and shape into complex forms, making them ideal for customized applications.
• High Remanence: AlNiCo magnets retain their magnetization well, making them ideal for use in devices where a strong, consistent magnetic field is necessary over time.
• Corrosion Resistance: These magnets also show good corrosion resistance, especially in moist or humid environments, which extends their lifespan and reduces maintenance requirements.

Discover our optimized AlNiCo magnet products.

Comparative Analysis of SmCo and AlNiCo Magnets

In this section, we compare Samarium Cobalt (SmCo) magnets with AlNiCo magnets based on several key performance metrics, such as temperature resistance, magnetic strength and stability in high-temperature environments, and durability and corrosion resistance.

1. Comparison of Temperature Resistance (Curie Temperature, Operating Temperature Range)

Temperature resistance is a critical factor for magnets used in high-temperature environments. The Curie temperature is the temperature at which a magnet loses its permanent magnetism, and the operating temperature range indicates the temperatures at which the magnet can function effectively.

SmCo Magnets (Samarium Cobalt)：

• Curie Temperature: SmCo magnets have a very high Curie temperature (~800°C to 1000°C), which allows them to maintain magnetic properties even at very high temperatures.
• Operating Temperature Range: They can function effectively in temperatures ranging from -40°C to 350°C, making them suitable for extreme conditions, particularly in automotive, aerospace, and military applications.

AlNiCo Magnets：

• Curie Temperature: AlNiCo magnets also have a high Curie temperature (~800°C), but they are more sensitive to higher temperatures compared to SmCo magnets.
• Operating Temperature Range: AlNiCo magnets can operate up to approximately 550°C, which is lower than SmCo magnets but still provides good stability for many industrial applications.

2. Magnetic Strength and Stability in High-Temperature Environments

Magnetic strength and stability in high-temperature environments are crucial for the performance of magnets used in motors, sensors, and other high-performance applications.

SmCo Magnets (Samarium Cobalt)：

• Magnetic Strength: SmCo magnets have a very high energy product (BH_max), typically around 20-30 MGOe, which makes them ideal for applications requiring strong magnetic fields in a compact form.
• Stability: SmCo magnets maintain their magnetic strength very well at elevated temperatures and are less likely to lose their magnetism in high-temperature environments.

AlNiCo Magnets：

• Magnetic Strength: AlNiCo magnets have a moderate energy product (BH_max) of about 6 MGOe, meaning they are not as strong as SmCo magnets but still provide a stable magnetic field in many applications.
• Stability: AlNiCo magnets perform well in high-temperature environments up to ~350°C, but their strength can degrade more significantly than SmCo magnets at temperatures above 350°C.

3. Durability, Corrosion Resistance, and Other Performance Metrics

The durability and corrosion resistance of magnets are essential for their longevity and performance in various environments, especially in industrial or outdoor conditions.

SmCo Magnets (Samarium Cobalt)：

• Durability: SmCo magnets are highly durable, resistant to wear, and can perform in harsh environments.
• Corrosion Resistance: They are excellent in resisting corrosion and oxidation, making them ideal for aerospace, automotive, and outdoor applications where magnets are exposed to harsh conditions.
• Mechanical Strength: However, they are brittle and can break or shatter under high mechanical stress.

AlNiCo Magnets / AlNiCo：

• Durability: AlNiCo magnets are more prone to mechanical damage compared to SmCo magnets, but are still durable under normal conditions.
• Corrosion Resistance: AlNiCo magnets are generally resistant to corrosion, though they can corrode more easily in humid environments or the presence of chemicals.
• Mechanical Strength: AlNiCo magnets are tougher and can withstand more mechanical stress than SmCo magnets without breaking, making them better suited for applications with significant physical forces.

4. Cost Comparison

The cost of the materials used in SmCo and AlNiCo magnets is another important factor in choosing the right magnet for specific applications.

SmCo Magnets (Samarium Cobalt)：

• Cost: SmCo magnets are more expensive due to the use of rare-earth materials like samarium and cobalt. They also require more complex manufacturing processes, contributing to their higher cost.

AlNiCo Magnets / AlNiCo：

• Cost: AlNiCo magnets are more cost-effective as they use more abundant materials such as aluminum, nickel, and cobalt. Their simpler manufacturing process also lowers the overall cost.

Request a customized quote for high-quality SmCo or AlNiCo magnet products.

What Are The Key Applications of SmCo and AlNiCo Magnets?

The Key Applications of SmCo Magnets

Key Features: High coercivity, excellent temperature stability, corrosion resistance.

Typical Applications:
✅ Aerospace & Defense

• Satellite positioning systems
• Aircraft actuators and sensors
• Military radar and guidance systems

✅ Medical & Precision Instruments

• MRI components
• High-precision servo motors
• Laboratory equipment

✅ Industrial Automation

• Robotics joints
• High-temp sensors
• Oil & gas downhole tools

The Key Applications of AlNiCo Magnets

Key Features: Excellent heat resistance, low cost, but lower coercivity.

Typical Applications:
✅ Consumer Electronics

• Electric guitar pickups
• Loudspeakers for vintage audio
• Analog meter movements

✅ Industrial Equipment

• Temperature sensors in furnaces
• Ignition systems
• Hydraulic valve controls

✅ Automotive

• Classic car tachometers
• Windshield wiper motors
• Alternator regulators

When to Choose SmCo Magnets?

Key Selection Criteria:

High Strength in Compact Size

Typical Applications:
✓ Drone propulsion motors
✓ Miniature precision actuators
✓ Spacecraft control systems

Advantages:
• Energy product (20-32 MGOe) 3-6× higher than AlNiCo
• 60% volume reduction for equivalent magnetic output

Corrosive/Harsh Environments

Ideal Use Cases:
✓ Marine instrumentation
✓ Chemical process sensors
✓ Downhole oilfield equipment

Key Features:
• Inherent corrosion resistance (no coating required)
• Superior radiation tolerance

Temperature Range

• Optimal operating range: -40°C to 250°C
• Short-term exposure: 350°C (special grades available)

Avoid When:
✖ Continuous operation above 300°C
✖ Cost-sensitive projects
✖ Applications requiring flexible mounting

When to Choose AlNiCo Magnets?

Key Selection Criteria:

High-Temperature Requirements

Thermal Performance:
✓ Standard grades: -40°C to 450°C
✓ Special grades: Up to 550°C

Typical Applications:
• Industrial furnace sensors
• Combustion engine components
• Thermal processing equipment

Budget Considerations

Cost Comparison:
✓ SmCo: $100-300/kg
✓ AlNiCo: $20-80/kg

Recommended For:
• High-volume production
• Non-critical components

Unique Electromagnetic Properties

Advantages:
✓ High remanence (1.0-1.4T)
✓ Reversible temperature coefficient

Common Uses:
• Analog measurement devices
• High-fidelity audio systems

Avoid When:
✖ Strong external magnetic fields present
✖ High-frequency response required
✖ Miniaturization is critical

Comparative Decision Table:

Industry-Specific Recommendations

Automotive:

• EV traction motors → SmCo
• Conventional vehicle sensors → AlNiCo

Energy Sector:

• Wind turbine generators → SmCo
• Geothermal monitoring → AlNiCo

Consumer Electronics:

• Premium earphones → SmCo
• Household appliances → AlNiCo

Need application-specific recommendations? Provide:

• Operating temperature range
• Budget constraints
• Critical performance requirements

Heeger Magnet can provide you a professional and customized solutions for your project. Contact us today!

In conclusion, both SmCo and AlNiCo magnets offer unique advantages in high-temperature applications, but each has its own set of strengths and weaknesses. SmCo magnets excel in extremely high-temperature environments, providing superior magnetic strength and stability even at temperatures exceeding 350°C. However, they come at a higher cost and are more brittle under mechanical stress. AlNiCo magnets, on the other hand, are more affordable and offer good performance at moderately high temperatures (up to 550°C), with better mechanical toughness but a reduction in magnetic strength at elevated temperatures.

When choosing the right magnet for a specific application, it is crucial to consider factors such as the operating temperature, mechanical stress, magnetic requirements, and budget. For applications requiring high magnetic strength at extreme temperatures, such as aerospace or high-performance electric motors, SmCo is the ideal choice. For moderate temperature applications with cost constraints and where mechanical durability is important, AlNiCo may be the better option.

Looking to the future, the demand for high-performance magnets in industries like electric vehicles, renewable energy, and aerospace will continue to drive innovation in magnet technology. Advancements in materials science may lead to the development of new magnets with even greater temperature tolerance, magnetic strength, and cost-effectiveness, expanding their use in a broader range of high-temperature applications.
