SmCo or NdFeB? How to Select the Right Magnet for Harsh Environments

Rare-earth magnets, specifically samarium cobalt (SmCo) and neodymium iron boron (NdFeB), are pivotal in industries facing harsh environments, such as aerospace, automotive, and renewable energy. In 2025, these magnets will power critical applications—think jet engines enduring 800°C or electric vehicle motors battling vibration and corrosion. Their ability to maintain magnetic performance under extreme conditions like high temperatures, corrosive atmospheres, and mechanical stress makes them indispensable. However, choosing between SmCo and NdFeB can be daunting due to their distinct strengths and trade-offs.

This blog aims to simplify the decision-making process by comparing SmCo and NdFeB magnets for harsh environments. We’ll explore their properties, performance in challenging conditions, and practical selection criteria to ensure optimal performance and cost-effectiveness. Whether you’re designing a wind turbine or a deep-sea sensor, understanding these magnets is key to success in 2025.

At Heeger Magnet, we specialize in high-quality samarium cobalt and neodymium magnets, ensuring optimal performance for industrial and scientific applications.

What Are SmCo Magnets (Samarium Cobalt)?

SmCo (Samarium Cobalt, SmCo₅ or Sm₂Co₁₇) is a high-performance rare-earth permanent magnet known for its exceptional thermal stability, corrosion resistance, and reliability in extreme environments. While not as strong as NdFeB magnets, SmCo magnets excel in high-temperature, aerospace, military, and medical applications where performance under stress is critical.

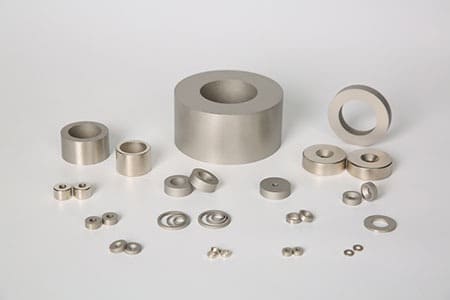

SmCo magnets

Grades of SmCo Magnets:

GradeBHmax (MGOe)Max Operating TempKey Uses
SmCo5 (1:5 Type)16–25250–300°CSensors, medical tools
Sm₂Co₁₇ (2:17 Type)20–32300–350°CAerospace, defense
High-Temp SmCo (Zr-doped)18–28Up to 450°C (short-term)Missile systems, jet engines

Key Properties of SmCo Magnets:

PropertySmCo₅ (1:5 Type)Sm₂Co₁₇ (2:17 Type)Advantage
Magnetic Strength (BHmax)16–25 MGOe20–32 MGOeStronger than AlNiCo/Ferrite
Curie Temperature (Tc)720–750°C800–825°CRetains magnetism at extreme heat
Max Operating Temp250–300°C300–350°CBest for high-temp applications
Coercivity (Hci)8–12 kOe10–30 kOeResists demagnetization
Temperature Coefficient-0.04%/°C-0.03%/°CMore stable than NdFeB
Corrosion ResistanceExcellent (does not require coating)ExcellentIdeal for harsh environments

Common Applications

✔ Aerospace & Defense (satellite systems, actuators, sensors)
✔ Medical Devices (MRI, surgical tools)
✔ Oil & Gas (downhole drilling sensors)
✔ High-Temperature Motors (EVs, industrial machinery)
✔ Military & Aviation (radar, missile guidance systems)

Limitations of SmCo Magnets

❌ Lower Magnetic Strength (compared to NdFeB)
❌ Brittle & Hard to Machine (requires diamond cutting tools)
❌ Expensive (due to cobalt & samarium content)

Looking for premium Samarium Cobalt Magnets (SmCo Magnets)? Explore Heeger Magnets’ selection.

What Are NdFeB Magnets (Neodymium Iron Boron)?

NdFeB (Neodymium Iron Boron, Nd₂Fe₁₄B) is the strongest type of permanent magnet commercially available today. It belongs to the rare-earth magnet family and is widely used in high-performance applications due to its exceptional magnetic strength, energy density,  and cost-effectiveness compared to alternatives like SmCo (Samarium Cobalt) or AlNiCo magnets.

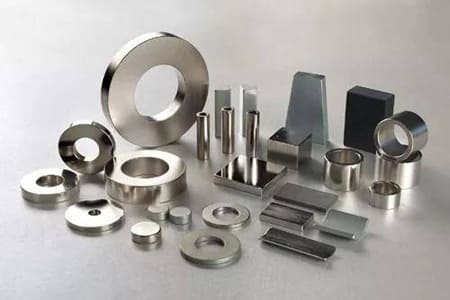

NdFeB Magnets

Grades of NdFeB Magnets

GradeMax Energy Product (BHmax)Max Operating TempCommon Uses
N35-N5235–52 MGOe80°CConsumer electronics
N30H-N50H30–50 MGOe120°CAutomotive sensors
N30SH-N45SH30–45 MGOe150°CIndustrial motors
N28UH-N40UH28–40 MGOe180°CAerospace, defense
N26EH-N38EH26–38 MGOe200°CHigh-temp applications

Key Properties of NdFeB Magnets

PropertyTypical ValueAdvantage
Magnetic StrengthUp to 52 MGOe (Mega-Gauss Oersteds)Strongest permanent magnet
Curie Temperature (T<sub>c</sub>)310–400°C (depending on grade)Loses magnetism above this point
Max Operating Temp80–200°C (higher with special grades)Good for most industrial uses
Coercivity (H<sub>ci</sub>)10–30 kOe (varies by grade)Resists demagnetization
Density~7.4 g/cm³Lighter than SmCo
Corrosion ResistancePoor (requires coating)Needs Ni, Zn, or epoxy plating

Common Applications

✔ Electric Motors (EVs, drones, industrial motors)
✔ Hard Disk Drives (HDDs) & Speakers
✔ MRI Machines & Medical Devices
✔ Wind Turbine Generators
✔ Smartphones (vibration motors, MagSafe

Limitations of NdFeB Magnets

❌ Low Heat Resistance (degrades above 150°C unless high-grade)
❌ Prone to Corrosion (requires protective coatings)
❌ Brittle (can crack under mechanical stress)

Why is NdFeB So Strong?

  • Crystalline Structure: The Nd₂Fe₁₄B atomic alignment creates an extremely high magnetic anisotropy (preferred magnetization direction).
  • Rare-Earth ContentNeodymium (Nd) enhances coercivity, while Iron (Fe) and Boron (B) contribute to saturation magnetization.

Discover our high-quality Neodymium Magnets (NdFeB Magnets).

Performance Comparison: SmCo vs. NdFeB Magnets in Harsh Environments

When selecting magnets for high-temperature, corrosive, or mechanically demanding conditions, understanding the differences between SmCo (Samarium Cobalt) and NdFeB (Neodymium Iron Boron) is crucial. Below is a detailed comparison of their performance in harsh environments.

1. Temperature Resistance

PropertySmCo (Sm₂Co₁₇)NdFeB (High-Temp Grade)
Max Continuous Operating Temp300–350°C150–200°C (special grades)
Curie Temperature (Tc)800–825°C310–400°C
Irreversible Flux Loss (300°C, 1000h)< 3%> 10% (unless stabilized)
Temperature Coefficient (αBr)-0.03%/°C-0.12%/°C (standard grades)

2. Corrosion Resistance

PropertySmCoNdFeB
Oxidation ResistanceExcellent (no coating needed)Poor (requires Ni, Zn, or epoxy plating)
Degrades if the coating is compromisedResistantVulnerable (coating failure leads to rust)
Chemical Exposure (acids, solvents)StableDegrades if coating is compromised

3. Mechanical Durability

PropertySmCoNdFeB
BrittlenessVery brittle (hard to machine)Brittle but slightly more impact-resistant
Tensile StrengthLow (~50 MPa)Slightly better (~80 MPa)
Machining DifficultyRequires diamond toolsEasier to cut/grind

Request a custom quote for SmCo and NdFeB magnets.

Key Factors When Selecting Magnets for Harsh Environments

Choosing the right magnet for demanding conditions requires careful evaluation of multiple factors. Below are the most critical considerations when deciding between SmCo and NdFeB for high-stress applications.

1. Temperature Requirements

  • > 300°C → SmCo (best)
  • 150–200°C → High-Temp NdFeB (SH/UH/EH grades)
  • < 150°C → Standard NdFeB (cost-effective)

⚠ Watch for irreversible flux loss (NdFeB degrades faster at high temperatures).

2. Corrosion & Chemical Exposure

EnvironmentBest Magnet Choice
Humid/Salty AirSmCo (naturally resistant) or Coated NdFeB
Acids/SolventsSmCo
Vacuum/SpaceSmCo (outgassing-resistant)

❌ Avoid uncoated NdFeB in corrosive environments.

3. Mechanical Stress & Durability

  • Vibration/Impact → AlNiCo (least brittle) or Encapsulated NdFeB
  • Precision Machining Needed → SmCo (but requires diamond tools)
  • High Wear Applications → Ferrite (cheap, durable, but weak)

4. Magnetic Strength Needs

Magnet TypeEnergy Product (BHmax)Best When You Need…
NdFeBUp to 52 MGOeMaximum strength in compact sizes
SmCo20–32 MGOeBalanced strength + extreme temp resistance
AlNiCo5–9 MGOeHigh temp but lower strength
Ferrite3–5 MGOeCheap, stable, but weak

5. Cost & Availability

  • Budget-Constrained? → Ferrite or NdFeB
  • High-Performance Needed? → SmCo (premium price)
  • Long-Term Reliability Critical? → SmCo (lower failure risk)

💰Trade-off: SmCo costs 3–5× more than NdFeB but lasts longer in harsh conditions.

6. Radiation & Oxidation Resistance

  • Space/Nuclear Applications → SmCo (best radiation resistance)
  • Medical/Military Use → SmCo or Specialized NdFeB

Need a custom recommendation? Provide your:

  • Operating temperature range
  • Exposure to moisture/chemicals
  • Required magnetic strength
  • Budget constraints

Heeger Magnet will provide you with specialized custom solutions.

When selecting the right magnet for harsh environments, key factors such as temperature resistance, corrosion resistance, mechanical strength, and specific environmental conditions must be considered. SmCo magnets are ideal for applications requiring high temperature and corrosion resistance, making them suitable for aerospace, military, and industrial uses. However, their brittleness requires careful handling. NdFeB magnets, with their superior magnetic strength and cost-effectiveness, are best for applications where high magnetic performance is critical, though they need protection from temperature and corrosion in harsh environments. In the future, advancements in magnet technology will likely focus on improving temperature tolerance, corrosion resistance, and mechanical strength, driven by the growing demand in industries like aerospace, energy, and automotive.
