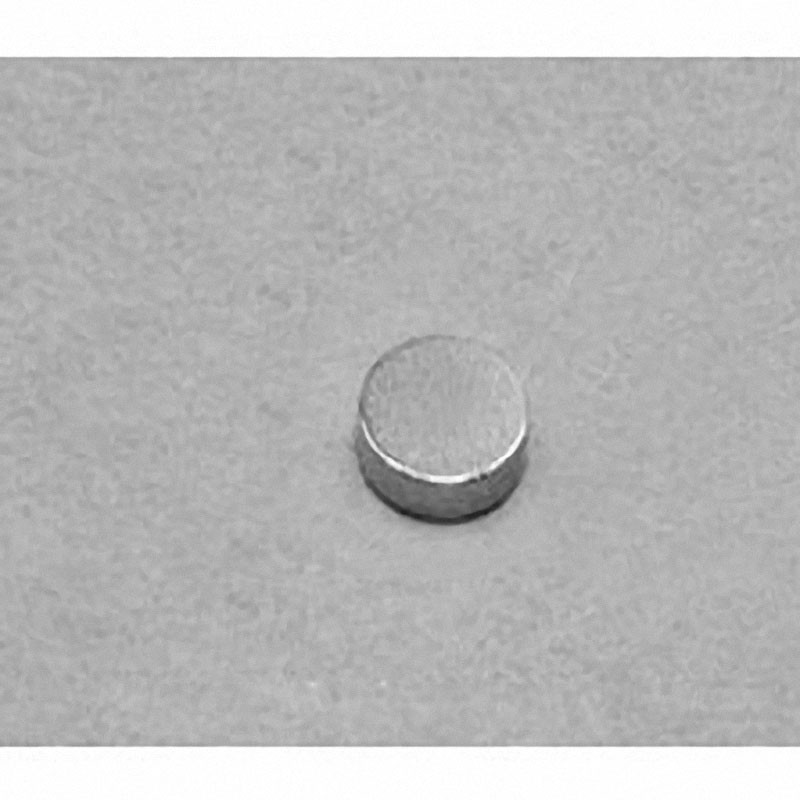

D503 Neodymium Disc Magnet, 5/16" dia. x 3/32" thick View larger

D503 Neodymium Disc Magnet, 5/16" dia. x 3/32" thick

HGM0043-D503

New product

This neodymium countersunk magnet is made of super strong N42 NdFeB (NIB) material, coated with Nickel (Ni+Cu+Ni triple layers). The dimension of this Tiny neodymium magnet is 5/16" dia. x 3/32" thick, magnetized through the thickness. Its individual pull force is approximately 2.22lbs.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

ShapeDISC
Dimension5/16" dia. x 3/32" thick
Tolerances±0.004" x ±0.004"
Weight (Oz.)0.002
GradeN42
CoatingNickel
MaterialsNdFeB (neodymium)
Magnetization directionThrough Thickness
Magnetic Face5/16" dia.
Pull Force (Lbs)2.22
Surface Field (Gauss)3398
Max. Operating Temp (°C/°F)80

More info

ü  5/16 inch diameter x 3/32 inch thick

ü  Each magnet's north and south pole are on opposite 5/16 inch diameter faces

ü  Each magnet can support a steel weight of up to 2.22lb vertically from the magnetic face when in flush contact with a mild steel surface

ü  Excellent resistance to demagnetization.

ü  Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish

ü  The magnet will be separated by the gasket.

ü  The box will be packed with iron to a magnetic shield.



These Tiny Neodymium disc magnets are little bigger than a watch battery but have an astonishing pull of 2.22lb. Every magnet has a triple coating of Nickel, copper and Nickel again to prevent corrosion. Our Neodymium magnets are typically used in computer hard drives, audio speakers, electronics and medical fields. They also have many uses in engineering and manufacturing where small size and maximum strength are required. Moreover, they are ideal for creating a shock-absorbing or damping effect because of their resistance to demagnetization.

Request a custom magnet quote, Please contact Heeger Magnet.

Ø  Custom Magnets and Assemblies:

Design Simulation Prototype Production

Ø  Manufacturing capacity: Heeger Magnet can produce custom magnets in large volumes and retain inventory for just in time delivery. HM can also produce plastic or metal parts with embedded magnets.

Ø  Custom magnets lead time: 3-4 Weeks.

Ø  Custom plastic or metal assemblies lead time: 4-5 Weeks.



Neodymium Disc Magnet Safety Tips

Please keep these Tiny neodymium magnets away from children, as these magnets may cause severe injury(even death)if swallowed. Please check our safety guideline before handle these magnets.
