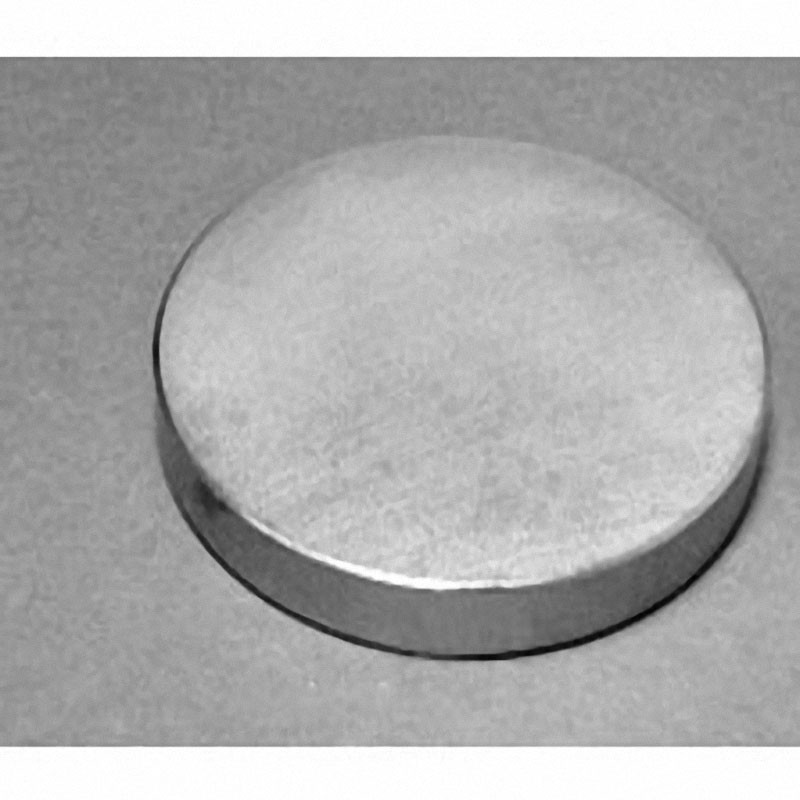

DZX08-N52 Neodymium Disc Magnet, 4" dia. x 1/2" thick View larger

DZX08-N52 Neodymium Disc Magnet, 4" dia. x 1/2" thick

HGM0249-DZX08-N52

New product

This neodymium countersunk magnet is made of super strong N52 NdFeB (NIB) material, coated with Nickel (Ni+Cu+Ni triple layers). The dimension of this Huge neodymium magnet is 4" dia. x 1/2" thick, magnetized Through Thickness. Its individual pull force is approximately 270.5lbs.

More details

Inquiry

Please contact us if you need customized services. We will contact you with the price and availability in 24 hours.

Data sheet

ShapeDISC
Dimension4" dia. x 1/2" thick
Tolerances±0.004" x ±0.004"
Weight (Oz.)1.7
GradeN52
CoatingNickel
MaterialsNdFeB (neodymium)
Magnetization directionThrough Thickness
Magnetic Face4" dia.
Pull Force (Lbs)270.5
Surface Field (Gauss)1795
Max. Operating Temp (°C/°F)80

More info

ü  4 inch diameter x 1/2 inch thick

ü  Each magnet's north and south pole are on opposite 4 inch diameter faces

ü  Each magnet can support a steel weight of up to 270.5lb vertically from the magnetic face when in flush contact with a mild steel surface

ü  Excellent resistance to demagnetization.

ü  Coated with three layers of nickel, copper and nickel to reduce corrosion and provide a smooth finish

ü  The magnet will be separate by gasket.

ü  The box will be packed with iron to a magnetic shield.



These Huge Neodymium disc magnets are little bigger than a watch battery but have an astonishing pull of 270.5lb. Every magnet has a triple coating of Nickel, copper and Nickel again to prevent against corrosion. Our Neodymium magnets are typically used in computer hard drives, audio speakers, electronics and medical fields. They also have many uses in engineering and manufacturing where small size and maximum strength are required. What's more, they are ideal for creating a shock-absorbing or damping effect because of their resistance to demagnetization.

Request a custom magnet quote, Please contact Heeger Magnet.

Ø  Custom Magnets and Assemblies:

Design Simulation Prototype Production

Ø  Manufacturing capacity: Heeger Magnet can produce custom magnets in large volumes and retain inventory for just in time delivery. HM can also produce plastic or metal parts with embedded magnets.

Ø  Custom magnets lead time: 3-4 Weeks.

Ø  Custom plastic or metal assemblies lead time: 4-5 Weeks.



Neodymium Disc Magnet Safety Tips

Please keep these Huge neodymium magnets away from children, as these magnets may cause severe injury(even death) if been swallowed. Please check our safety guideline before handle these magnets.
