How Are SmCo Magnets Manufactured?
Samarium Cobalt (SmCo) magnets are high-performance rare-earth magnets known for their exceptional thermal stability, strong magnetic strength, and resistance to corrosion and demagnetization. These characteristics make them indispensable in aerospace, defense, automotive, medical, and energy industries, especially in extreme environments where traditional magnets fail. This article provides a comprehensive overview of the SmCo magnet manufacturing process, from raw material preparation to final magnetization. We will explore the differences between SmCo₅ and Sm₂Co₁₇ types, the step-by-step production techniques, and how each stage affects the magnet’s final performance. Whether you’re sourcing magnets or optimizing industrial applications, understanding this process is key to leveraging the full potential of SmCo materials.
At Heeger Magnets, we specialize in samarium cobalt magnets, ensuring optimal performance for industrial and scientific applications.

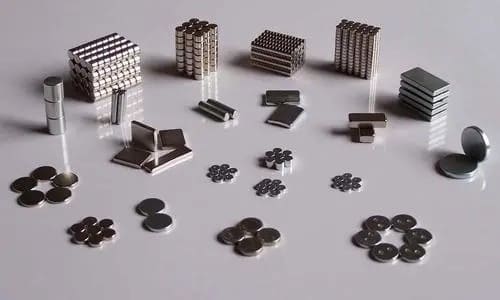

What Are SmCo Magnets?
Samarium Cobalt (SmCo) magnets are high-performance permanent magnets made from rare-earth elements, primarily samarium and cobalt. They are known for their excellent magnetic strength, superior thermal stability, and resistance to corrosion and demagnetization. SmCo magnets are especially valuable in harsh or high-temperature environments where other magnets, such as neodymium (NdFeB), may fail.
There are two main types of SmCo magnets: SmCo₅ and Sm₂Co₁₇. These formulations differ in terms of composition, temperature range, energy product, and manufacturability. The following table compares their typical physical and magnetic characteristics.
Performance Comparison of SmCo Magnet Types:
| Property | SmCo₅ | Sm₂Co₁₇ |
| Composition | 1:5 (Sm:Co) | 2:17 (Sm:Co + Fe, Cu) |
| Curie Temperature (°C) | ~750 | ~840 |
| Max Operating Temp (°C) | 250–300 | 300–400 |
| Energy Product (BHmax, MGOe) | 20–25 | 28–32 |
| Remanence (Br, T) | 0.9–1.1 | 1.0–1.2 |
| Coercivity (Hc, kOe) | 15–25 | 20–30 |
| Density (g/cm³) | 8.2–8.4 | 8.3–8.5 |
| Corrosion Resistance | High | High |
| Machinability | Moderate | More difficult |
| Cost | Lower | Higher |
| Typical Application | Sensors, electronics | Aerospace, motors, defense systems |
In summary, Sm₂Co₁₇ provides better magnetic performance and high-temperature resistance, making it suitable for demanding environments like aerospace and defense. Meanwhile, SmCo₅ offers easier processing and cost advantages, making it a solid choice for electronics and sensors.
Explore our high-quality samarium cobalt magnet.
Why Is SmCo Magnet Manufacturing More Complex Than NdFeB?
SmCo magnets require stricter control over alloy purity, oxidation conditions, and magnetic alignment during manufacturing. This list details the main factors contributing to their production complexity.
Key Complexity Factors
- Precisely controlled alloy composition to balance coercivity and thermal resistance
- High-temperature sintering in an inert atmosphere to ensure density and structure
- Low oxygen thresholds to prevent oxidation-induced performance loss
- Brittle nature necessitates specialized machining and handling procedures
These rigorous controls ensure SmCo magnets maintain their superior performance, especially under extreme service conditions.
Request a custom quote for a high-quality samarium cobalt magnet.
What Materials Are Used to Produce SmCo Magnets?
High-purity raw materials are essential for achieving the desired magnetic properties and durability of SmCo magnets. The table below outlines the precise specifications for the alloy ingredients.
SmCo Alloy Composition Requirements
| Element | Specification | Role in Alloy |
| Samarium (Sm) | ≥ 99.5% purity | Provides high magnetic coercivity |
| Cobalt (Co) | ≥ 99.8% purity | Supports base magnetic structure |
| Fe, Cu, Zr | < 5% total | Refines grain structure and toughness |
These purity and composition standards are critical for enabling SmCo magnets to withstand thermal stress and maintain coercivity over time.
How Is the SmCo Powder Prepared?
The alloy ingot undergoes atomization and milling to produce ultrafine powder that forms the basis of SmCo magnets. Quality control at this stage determines the final performance potential.
Powder Preparation Parameters:
| Parameter | Target Range | Importance |
| Particle size (µm) | 2–5 | Ensures uniform sintering and density |
| Size distribution | D10–D90 < 3 µm | Consistency in microstructure |
| Oxygen content | < 0.10% | Prevents oxidation and performance degradation |
| Hall flow (s/50g) | < 25 | Indicator of flowability and compressibility |
| Tap density (g/cm³) | ≥ 4.8 | Higher packing density before sintering |
Controlled powder characteristics lead to better magnet properties and a more reliable sintering process.
How Are SmCo Magnets Formed and Aligned?
Forming and magnetic alignment are fundamental in establishing the final magnetic architecture. Proper methods significantly enhance SmCo performance.
Pressing & Magnetic Orientation Techniques
| Method | Pressure (MPa) | Field (Oe) | Advantage |
| Cold Isostatic Pressing | 150–300 | — | Uniform density, minimal voids |
| Die Pressing + Magnetic Field | 50–200 | 5,000–10,000 | Controlled magnetic directionality |
| Injection Molding | 100–200 | Field optional | Complex shapes with aligned domains |
Achieving proper alignment and densification directly enhances magnetic strength and consistency.
What Sintering & Heat Treatment Conditions Are Required?
Sintering solidifies the structure and establishes the magnet’s final microstructure. Precise control ensures optimal performance.
Sintering Conditions
| Parameter | Typical Value | Impact on Final Quality |
| Temperature | 1100–1200°C | Balances densification versus microstructure |
| Hold Time | 1–3 hours | Influences grain growth and strength |
| Atmosphere | Argon/Vacuum | Minimizes oxidative defects |
| Final Density | ≥ 98% theoretical | Maximizes magnetic properties |
This precise heat treatment maximizes magnetic strength, structure integrity, and long-term stability.
How Are SmCo Magnets Machined and Coated?
After sintering, magnets are dimensionally finished and protected. Specialized machining and coatings are vital for reliability in harsh settings.
Machining & Coating Practices
Machining Best Practices:
- Employ diamond tools at slow feed rates
- Use neutral pH coolants to prevent micro-cracks
- Conduct machining before magnetization
Common Coats:
- Ni–Cu–Ni (5–15 µm): High durability and corrosion protection
- Epoxy (50–100 µm): Cost-effective and insulating
- Gold (0.5–1 µm): Ideal for medical or cleanroom applications
These steps ensure mechanical resilience and environmental protection over the magnet’s lifespan.
What Is the Final Magnetization Process?
Magnetization is the last critical step, aligning domains to achieve peak magnetic performance tailored for specific applications.
Magnetization Methods
- Pulse Fields (10–30 Tesla): Maximum magnetization in a single pulse
- DC Coil Systems: Enables directional/controlled magnetization
- Post-magnetization annealing: Stabilizes magnetic properties
- Axial vs. radial orientation: Defined by component requirements
Precision magnetization guarantees reliable and predictable performance throughout the product’s life.
How Do SmCo & NdFeB Manufacturing Processes Compare?
Comparing SmCo and NdFeB highlights why SmCo is favored for high-temperature and harsh conditions despite a more complex and costly process.
SmCo vs NdFeB Manufacturing Comparison
| Aspect | SmCo (SmCo₅/Sm₂Co₁₇) | NdFeB (N35–N55) |
| Sinter Temp | 1100–1200°C | 1000–1100°C |
| Oxygen Sensitivity | Moderate | High |
| Machining Fragility | Brittle | Less brittle |
| Coating Requirement | Optional | Required |
| Max Temp Rating (°C) | 250–400 | 80–150 |
| Cost (USD/kg) | 120–150 | 50–80 |
SmCo’s demanding manufacturing process ultimately delivers higher performance in temperature and environmental thresholds.
FAQ
| Question | Answer Summary |
| Can SmCo magnets be 3D printed? | Not yet — current powder metallurgy constraints apply. |
| Are coatings mandatory? | Not always, but recommended for harsh or corrosive use. |
| What is the max operating temperature? | Up to 400 °C for Sm₂Co₁₇; SmCo₅ up to ~300 °C. |
| Are SmCo magnets fragile? | Yes — careful handling before and after magnetization is essential. |
| What’s the typical lead time? | Standard 3–8 weeks, depending on complexity and coatings. |
Conclusion
Producing SmCo magnets is a meticulous process—from alloy purity to magnetization—designed to ensure reliable performance under extreme conditions. If your project demands high-temperature endurance, corrosion resistance, and precise magnetic specifications, Heeger Magnets offers tailored SmCo solutions with top-tier quality, full traceability, and expert engineering support. Partnering with us guarantees exceptional reliability and lifetime performance.
